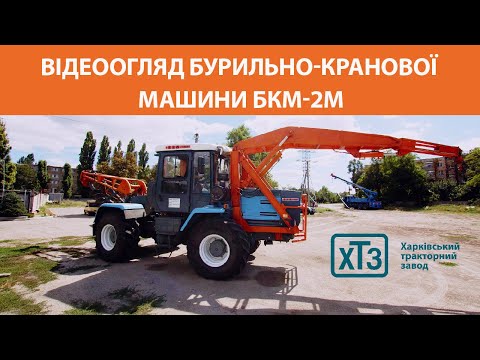

This unit is designed for drilling bores in soils with a freezing depth of no more than 60 cm, not containing rocks (I-III soil category); when equipped with reinforced and special drills, it is possible to use the machine in soils of I-IV soil categories.
- The length of the drill is 2.5m, the height of the crane boom is 7m, the length of the supports is 12m, the lifting capacity of the crane is up to 2000kg.
| Basic tractor characteristics | |||
| Engine | |||
| Base model | XTZ-159K.011 | XTZ-248K.21 | XTZ-249K.11 |
| Engine model | WEICHAI WP6T180E200 | FPT-Iveco NEF 67ENTX20 | WEICHAI WP7G240E301 |
| Rated power, kW (hp) | 132,5 (180) | 175 (238) | 176 (239) |
| Specific fuel consumption at rated power, g/kW. hour (g/hp hour) | 230 (169) | 205 (150) | 198 (145) |
| Chassis | |||
| Wheel formula | Four-wheel drive (4WD) | ||
| Transmission | PowerShift 12/4, mechanical, with hydraulic gear shifting within each range | ||
| Maximum transport speed, km/h | 30,08 | ||
| Working speed, km/h: | I – (3,36-6,03) II– (7,08-12,67) III – (16,27-30,08) | ||
| Tires | 21,3 R 24 FD-14 ANS10 | ||
| Track width, mm | 1860 | ||
| Turning radius, m | 6,5 | ||
| Fuel tank, l | 430 | ||
| Drilling equipment specifications | |||
| Modification | 14 | 14А | |
| Pit diameter (drill), mm | 420 | ||
| Maximum pit depth (drilling), mm | 2500 | ||
| Minimum rotational speed of the drill, rpm. | 60 | ||
| Maximum rotational speed of the drill, rpm. | 120 | ||
| Drill rotation drive | Hydraulic | Mechanical | |
| Crane equipment characteristics | |||
| Crane lifting capacity, kg | 2000 | ||
| Maximum lifting height of the cargo boom, m | 7 | ||
| Maximum length of installed supports, m | 12 | ||
| Overall dimensions of the crane-boring machine(transport position) | |||
| Length, mm | 11400 | ||
| Width, mm | 2400 | ||
| Height, mm | 3200 | ||
| Attached equipment weight, kg | 2050 | ||
| Total weight, kg | 10700 | 10350 | 10530 |
